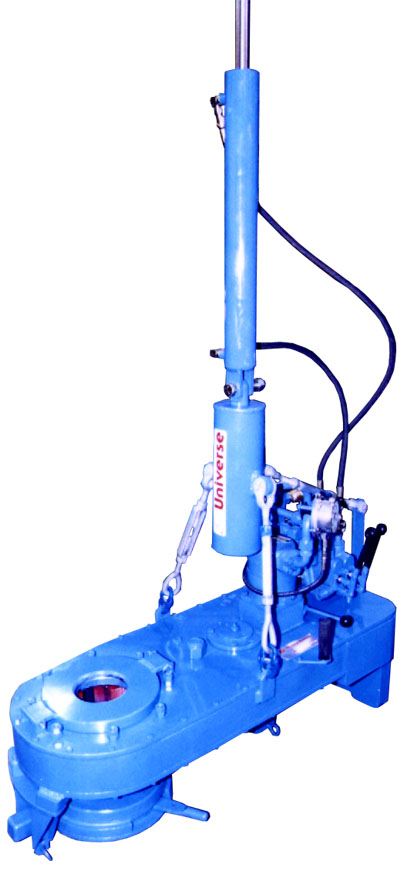

7" Closed Mouth Tong
 |
SPECIFICATIONS
Maximum torque at 2,500 psi (17,245 kPa): |
||
|
Low Gear
High Gear
|
11,100 ft-lbs (1,535 kg-m)
2,875 ft-lbs (397 kg-m) |
||
Maximum torque at 3,000 psi (20,684 kPa) |
|||
|
Low Gear
High Gear
|
13,000 ft-lbs (1,797 kg-m) 3,400 ft-lbs (470 kg-m) |
||
Maximum speed at 65 GPM (246 LPM): |
|||
|
Low Gear
High Gear
|
35 RPM
135 RPM
|
||
|
Jaws available with insert dies: |
|||
| 7" to 1-5/16” (177.8 to 33.3 mm) | |||
TONG DIMENSIONS |
|||
|
Length
Overall Width
Torque Arm
Weight
|
52” (1.32 m) 18” (0.46 m) 40” (1.02 m) 1100 lbs (498 kg) |
||
|
Space required on pipe w/o backup 8-1/8” (0.21 m)
Space required on pipe with backup 15-3/8” (0.39 m)
Maximum Elevator Diameter 32” (0.81 m)
|
|||
NOTES |
|||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong - Weight is approximate and may very depending on jaws and
accessories installed |
|||
|
|
|||
