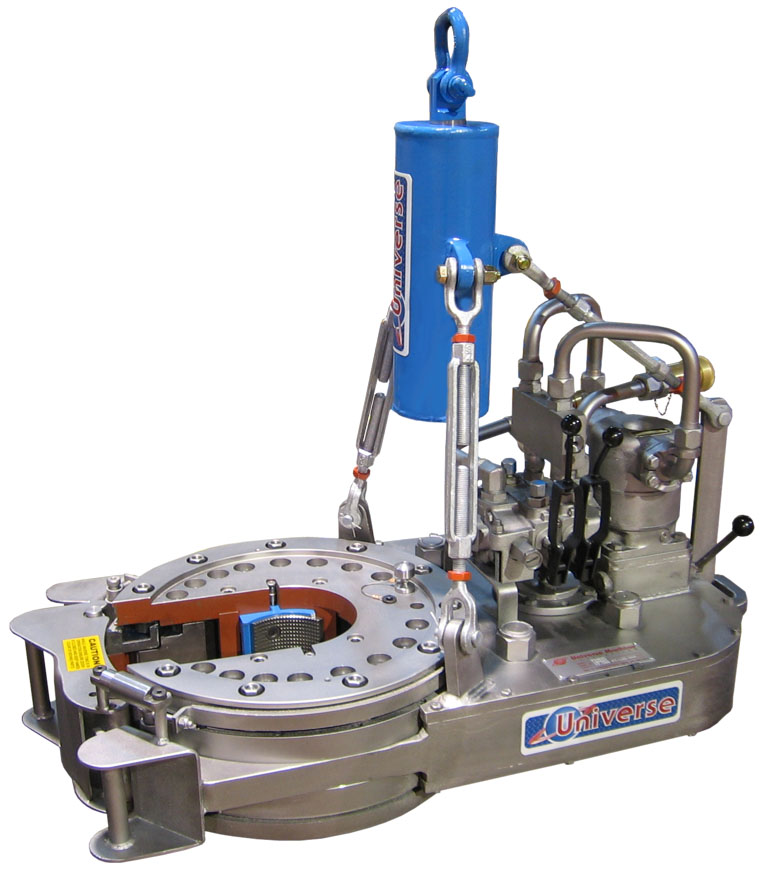

7 5/8" Compact Casing Tong
 |
SPECIFICATIONS
Torque at 2,500 psi (17,237 kPa): |
|
|
Low Gear
High Gear
|
14,100 ft-lbs (1,949 kg-m)
3,600 ft-lbs (498 kg-m)
|
|
Maximum torque at 3,000 psi (20,684 kPa): |
||
|
Low Gear
High Gear
|
17,000 ft-lbs (2,350 kg-m) 4,372 ft-lbs (604 kg-m) |
|
Maximum speed at 65 GPM (246 LPM): |
||
|
Low Gear
High Gear
|
25 RPM
97 RPM
|
|
| Jaws available |
Insert dies:
7-5/8” to 5-1/2” (194 – 140 mm)
Wrap around dies: 5-1/2” to 2-3/8” (140 – 60 mm)
|
|
|
TONG DIMENSIONS |
||
|
Length
Overall Width
Torque Arm
Weight
|
46-3/4” (1.19 m)
22” (0.58 m) 24” (0.61 m) 1,100 lbs (498 kg) |
|
 |
||

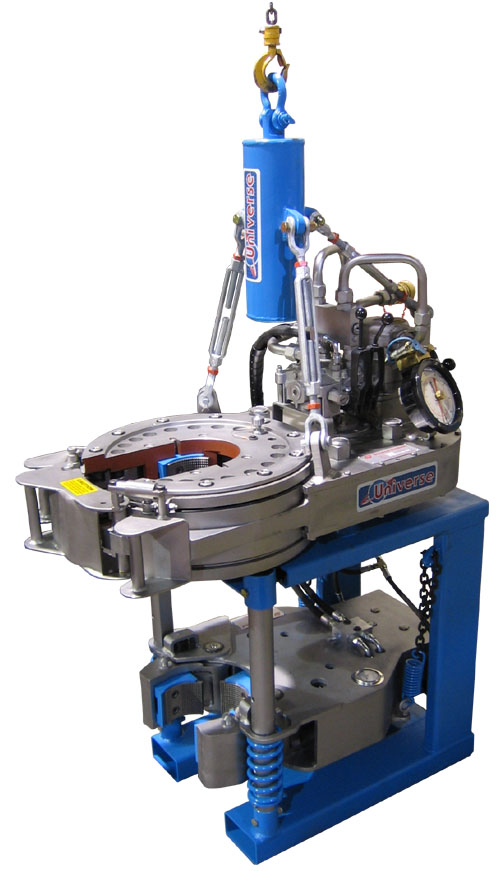

WITH HYDRAULIC BACKUP |
||
|
Length
Overall Width
Torque Arm
Weight
|
46-3/4” (1.19 m)
23” (0.58 m) 24” (0.61 m) 1,775 lbs (805 kg) |
|
NOTES |
||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong, and to the center of the load cell cradle on the backup - All weights above are approximate and may very depending
on jaws and accessories installed |
||
|
|
||
