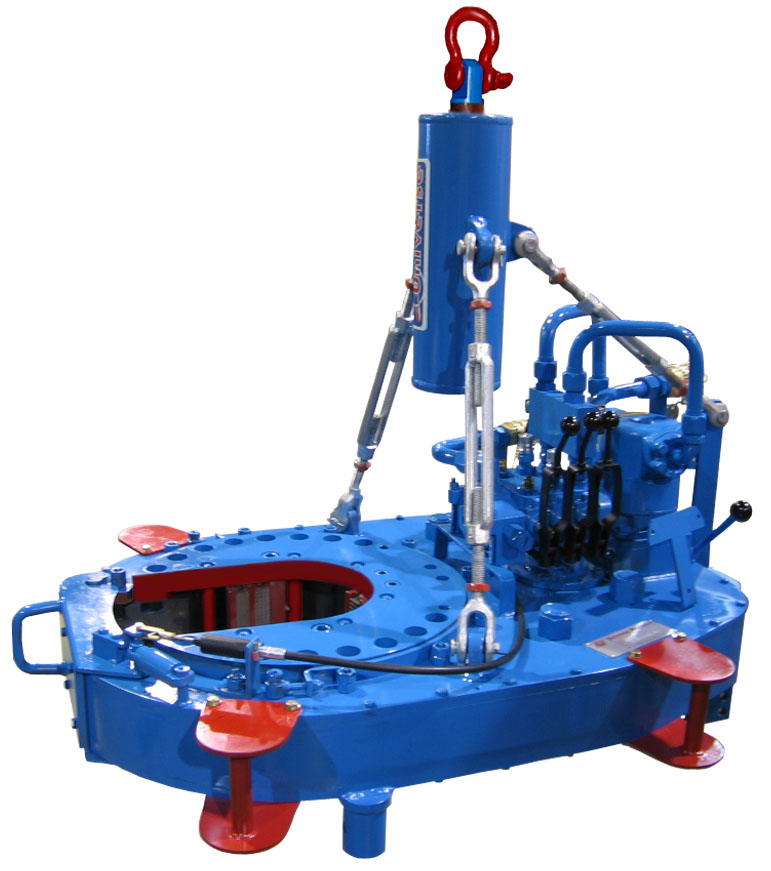

9 5/8" Casing Tong
 |
SPECIFICATIONS
Maximum torque at 2,500 psi (17,245 kPa): |
|
|
Low Gear
High Gear
|
18,000 ft-lbs (2,489 kg-m)
4,700 ft-lbs (650 kg-m)
|
|
Maximum torque at 3,050 psi (21,029 kPa) |
||
|
Low Gear
High Gear
|
22,000 ft-lbs (3,041 kg-m) 5,730 ft-lbs (792 kg-m) |
|
Maximum speed at 65 GPM (246 LPM): |
||
|
Low Gear
High Gear
|
21 RPM
84 RPM
|
|
|
Jaws available with insert dies: |
||
| 9-5/8” to 3-1/2” (244.5 to 88.9 mm) | ||
|
TONG DIMENSIONS |
||
|
Length
Overall Width
Torque Arm
Weight
|
49-1/4” (1.25 m)
28-1/2” (0.72 m) 30” (0.76 m) 1100 lbs (498 kg) |
|
 |
|
|

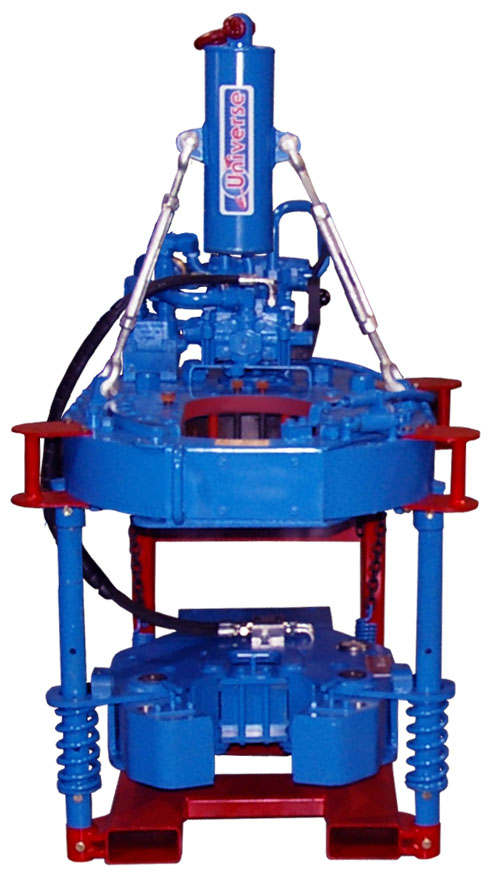

WITH HYDRAULIC BACKUP |
||
|
Length
Overall Width
Torque Arm
Weight
|
49-1/4” (1.25 m)
32-3/8” (0.82 m) 24” (0.61 m) 2,100 lbs (952 kg) |
|
NOTES |
||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong, and to the center of the load cell cradle on the backup - All weights above are approximate and may very depending
on jaws and accessories installed |
||
|
|
||
