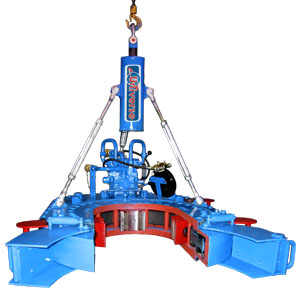

17" Casing Tong
 |
SPECIFICATIONS
Maximum torque at 2,500 psi (17,245 kPa): |
|
|
Low Gear
High Gear
|
23,070 ft-lbs (3,190 kg-m)
5,950 ft-lbs (823 kg-m) |
|
Maximum torque at 3,250 psi (22,408 kPa) |
||
|
Low Gear
High Gear
|
30,000 ft-lbs (4,148 kg-m) 7,740 ft-lbs (1070 kg-m) |
|
Maximum speed at 65 GPM (246 LPM): |
||
|
Low Gear
High Gear
|
16 RPM
63 RPM
|
|
|
Jaws available with insert dies: |
||
| 17” to 7” (431.8 to 177.8 mm) | ||
 |
||
| TONG DIMENSIONS |
||
|
Length
Overall Width
Torque Arm
Weight
|
59” (1.50 m)
37-3/4” (0.96 m) 36” (0.91 m) 1,695 lbs (769 kg) |
|
NOTES |
||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong - Weight is approximate and may very depending on jaws and
accessories installed |
||
|
|
||
