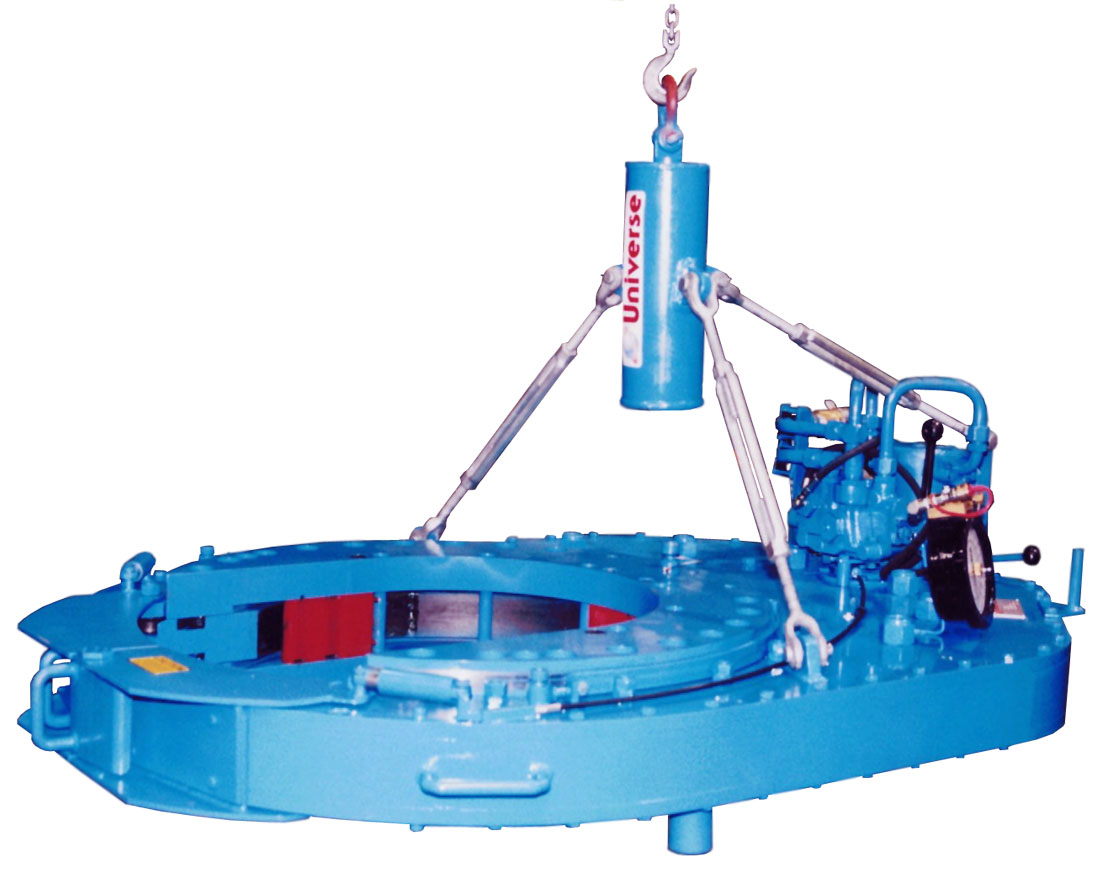

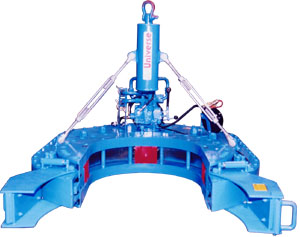

24 1/2" Casing Tong
 |
SPECIFICATIONS
Maximum torque at 2,500 psi (17,245 kPa): |
|
|
Low Gear
High Gear
|
29,300 ft-lbs (4,051 kg-m)
7,550 ft-lbs (1,044 kg-m) |
|
Maximum torque at 3,400 psi (23,442 kPa) |
||
|
Low Gear
High Gear
|
40,000 ft-lbs (5,530 kg-m) 10,275 ft-lbs (1,420 kg-m) |
|
Maximum speed at 65 GPM (246 LPM): |
||
|
Low Gear
High Gear
|
12 RPM
49 RPM
|
|
|
Jaws available with insert dies: |
||
| 24-1/2” to 8-5/8” (622.3 to 219.1 mm) | ||
 |
||
| TONG DIMENSIONS |
||
|
Length
Overall Width
Torque Arm
Weight
|
78” (1.98 m)
49-3/4” (1.26 m) 48” (1.22 m) 3,550 lbs (1,608 Kg) |
|
NOTES |
||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong - Weight is approximate and may very depending on jaws and
accessories installed |
||
|
|
||
