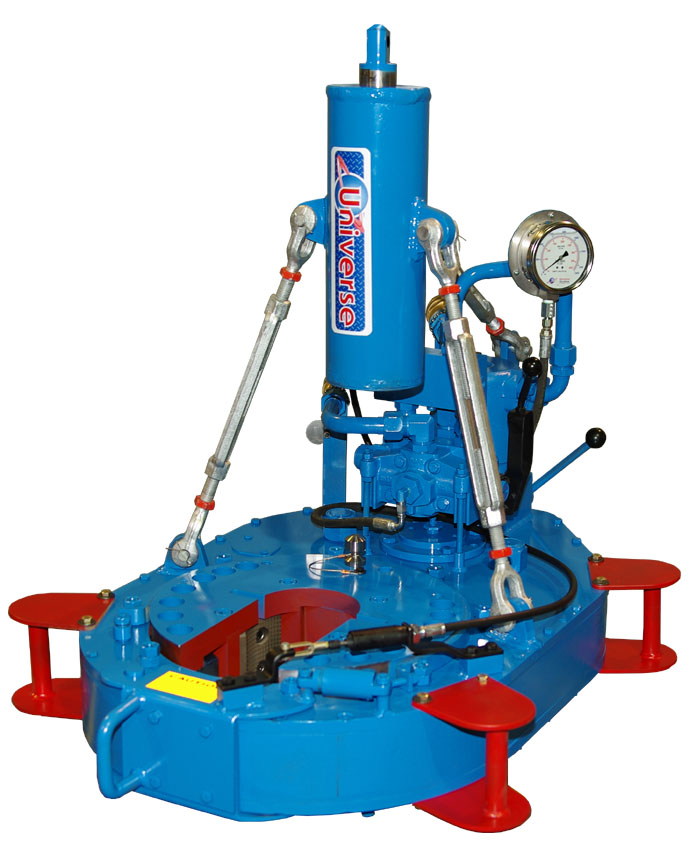

5 1/2" Tubing Tongs
 |
SPECIFICATIONS
Maximum torque at 2,500 psi (17,245 kPa): |
|
|
Low Gear
High Gear
|
15,000 ft-lbs (2,074 kg-m)
3,900 ft-lbs (539 kg-m)
|
|
Maximum speed at 65 GPM (246 LPM): |
||
|
Low Gear
High Gear
|
26 RPM
102 RPM
|
|
|
Jaws available with wrap around dies: |
||
| 5-1/2” to 3-1/4” (139.7 – 108 mm) 4-1/8” to 2-1/6” (104.8 – 52.4 mm) |
||
|
TONG DIMENSIONS |
||
|
Length
Overall Width
Torque Arm
Weight
|
45” (1.14 m)
24-1/2” (0.62 m)
26” (0.66 m)
850 lbs (385 kg)
|
|
 |
||

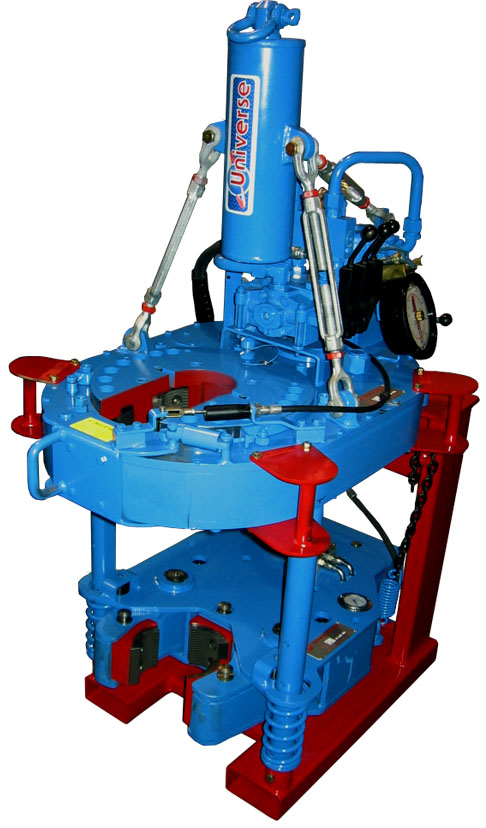

WITH HYDRAULIC BACKUP |
||
|
Length
Overall Width
Torque Arm
Weight
|
45" (1.15 m)
26-1/4" (0.67 m)
24" (0.56 m)
1,635 lbs (742 kg)
|
|
NOTES |
||
|
- Torque arm is measured from the center of the pipe to the
center of the back handle on the tong, and to the center of the load cell cradle on the backup - All weights above are approximate and may very depending
on jaws and accessories installed |
||
|
|
||
