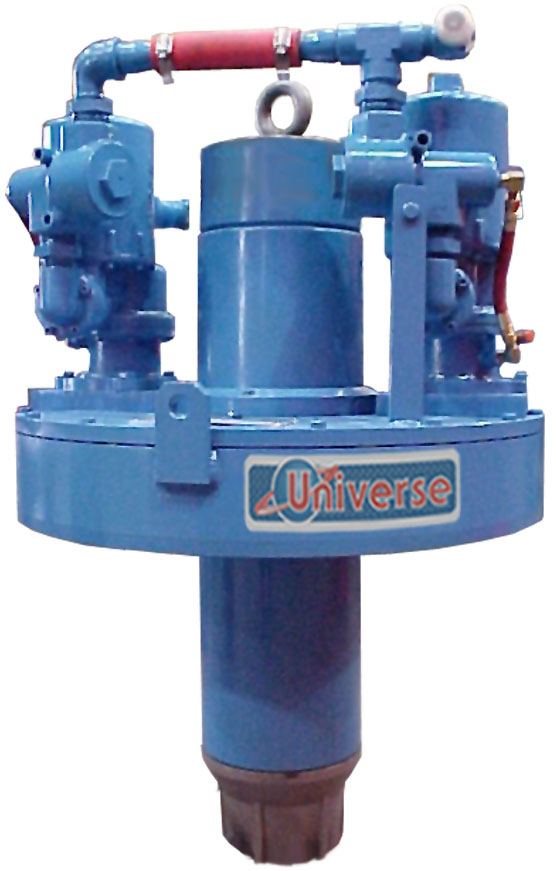

Pneumatic Kelly Spinner
|
|
 Mounted to bottom of swivel eliminating the need for dangerous spinning chain.
|
|
|
Driller can continue to turn rotary table while making a connection with the Kelly Spinner.
|
||
| Powered by non-lube air motor with built in relay valves and mufflers. |
||
| Does not require jaws or break bands. |
||
|
SPECIFICATIONS
|
||
| Maximum Torque
Maximum Speed
Power Requirements
|
1050 ft-lbs (145 kg-m)
290 rpm (free spin)
90 - 150 psi air @ 3 - 8 CFS
(621 - 134 kPa @ 0.08 - 0.23 cubic m/s)
|
|
| Sub Thread | 6-5/8 API Left Hand | |
|
DIMENSIONS
|
||
|
Diameter
Height
Weight (approx.)
|
24" (0.61 m)
29" (0.74 m)
750 lbs (340 kg)
|
|
