Hydraulic Tong Backups


RADIAL LOAD ELIMINATOR (RLE):
Eliminates radial load on the joint which causes torque to be lost and axial twist through the joint which may result in cross threading damage.

BI-DIRECTIONAL COMPRESSION LOAD CELL SYSTEM OPTION:
Two load cells which enable the operator to measure torque in both directions.

DUAL SIZE CAPABILITY:
On Models 02E10E and up the backup system incorporates a dual jaw position, which makes the backup capable of biting the casing and the coupling with the same jaws.

TRI-BITE LINK:
The backup utilizes a three jaw biting system providing equal force on all jaws for an optimum bite.

WRAP AROUND DIES:
Standard on model 02D06C and may be ordered for other models.

MODULAR:

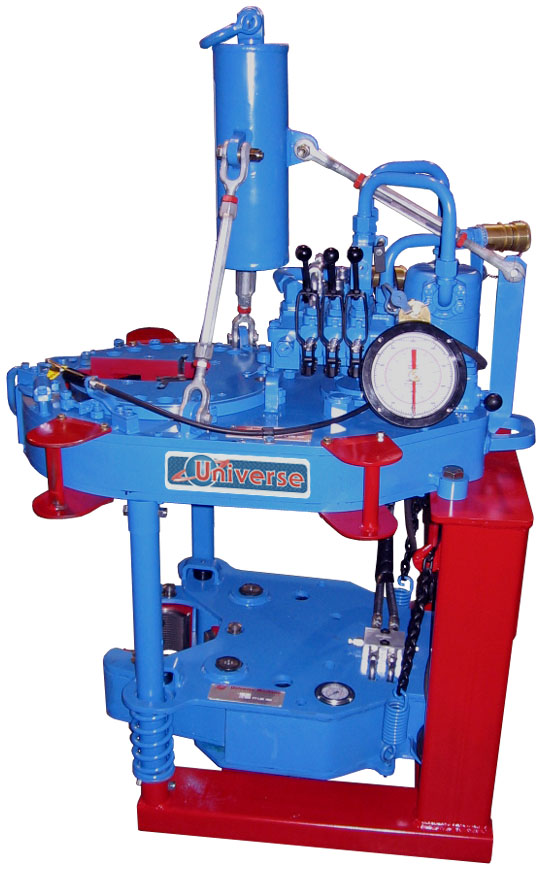

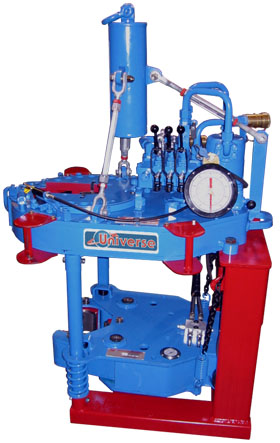

The backup is shown mounted below a Universe power tong but may also be mounted below other tongs.



QUOTE REQUEST

DOWNLOAD BROCHURE (Coming Soon)

Model

SIZE
inches


(mm)
Maximum
Torque
ft-lbs


(kg-m)

Weight
lbs


(kg)
Dimensions
width x length x height
inches (without tong)


(m)
02E06C
6
(152)
15,000
(2074)
650
(296)
26-3/8 x 31 x 31-1/2
(0.66 x 0.79 x 0.80)
02E07D
7-5/8
(194)
17,000
(2350)
700
(329)
23 x 31 x 34
(0.58 x 0.79 x 0.86)
02E10E
10-5/8
(270)
25,000
(3456)
750
(340)
32-3/8 x 31-5/8 x 30-1/2
(0.82 x 0.80 x 0.77)
02E14E
14-5/8
(372)
25,000
(3456)
950
(431)
38-1/4 x 33 x 30-1/2
(0.97 x 0.84 x 0.77)
