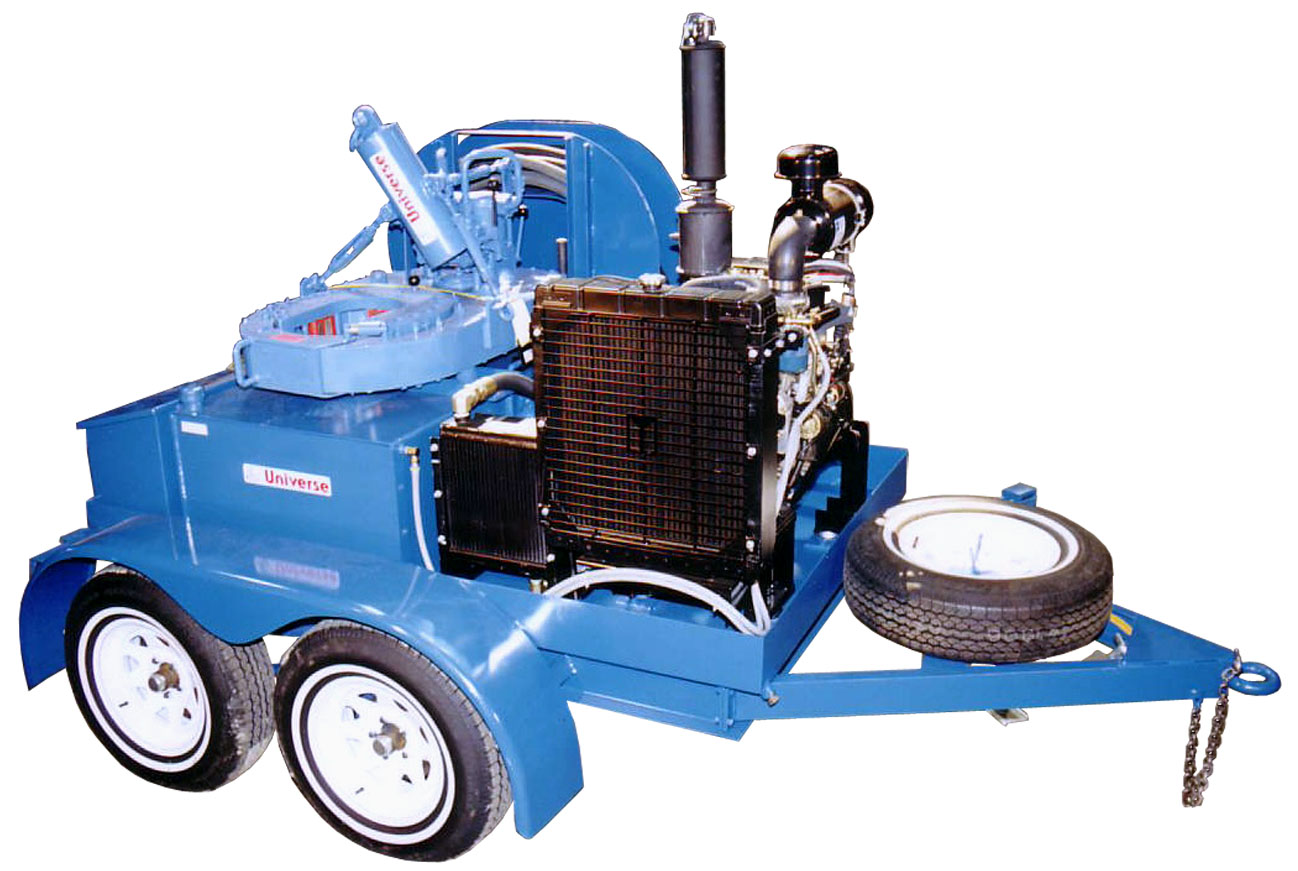

Diesel Trailer Units
 |
SPECIFICATIONS
|
|
|
Model Motor
|
03 60 D 62 HP (46 kW) - Isuzu 4JG1-PK |
|
Operating Temp. |
-10ºC to 43ºC (14ºF to 109ºF) |
|
|
Hi Output Low Output
|
1,000 psi (6,894 kPa) 65 GPM (246 LPM) @ 2,400 RPM 3,000 psi (20,684 kPa) 26 GPM (98 LPM) @ 2,400 RPM |
|
|
DIMENSIONS |
||
|
L x W X H |
134” x 76” x 66-1/2” (3.40 m x 1.19 m x 2.0 m) |
|
| Weight | 2,770 lbs (1,255 kg) - Excluding Oil/fuel | |
SPECIFICATIONS |
||
|
Model Motor
|
03 60 DD 75 HP (56 kW) - Deutz F4L914 Air Diesel |
|
|
Operating Temp. |
-10ºC to 43ºC (14ºF to 109ºF) |
|
Hi Output Low Output
|
1,000 psi (6,894 kPa) 60 GPM (227 LPM) @ 2,300 RPM 3,500 psi (24,131 kPa) 24 GPM (91 LPM) @ 2,300 RPM |
|
|
DIMENSIONS |
||
L x W X H |
134” x 76” x 66-1/2” (3.40 m x 1.19 m x 2.0 m) |
|
| Weight | 2,770 lbs (1,255 kg) - Excluding Oil/fuel | |
